Portable Laser Handheld Welding Machine - Air Conditioning Direct Cooling
Active air conditioning direct cooling technology can work continuously in the range of -20 ° C to 50 ° C, without fear of the influence of ambient temperature, small light fiber core diameter design, greatly improve the beam of light quality under the same power, high energy density, stable welding performance, support long-term welding work.
welding thickness: Less than 3mm
Laser power: 1500W/2000W
Product model: DA-H-1500K/2000K
Active air conditioning direct cooling technology, can work continuously in the range of -20 ℃~ 50 ℃, not afraid of the influence of ambient temperature, small light fiber core diameter design, greatly improve the beam of light quality under the same power, high energy density, stable welding performance, support long-term welding work.
single-module platform design, can work continuously and stably, the maximum output power is 2000W, and the peak power can reach 3000W.
modular integrated solution, highly integrated laser, cooling system, welding head, improve the overall performance and reliability.
new high-efficiency refrigeration solution, using R410 environmentally friendly refrigerant, reduce energy consumption, standby power consumption is only 260W, more energy saving and environmental protection.
non-circulating water pump, water tank, plate heat exchanger, simplify the structure, improve system stability and durability.
Compact design, highly standardized, improve equipment reliability and reduce maintenance requirements.

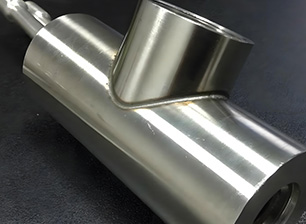

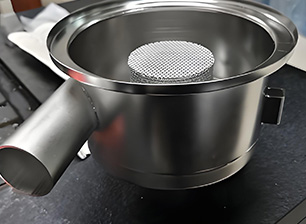

Energy focus, small thermal impact, outstanding performance in thin plate welding, fast welding speed, maintenance-free daily application.
presets a variety of welding parameter packages, suitable for different plates, improve welding efficiency and quality.
| Model | DA-H-1500K | DA-H-2000K |
|---|---|---|
| Output Power (W) | 1500 | 2000 |
| Operating Mode | Continuous Mode/Modulation Mode/Line Array Mode/Pulse Mode/Timer Mode | Continuous Mode/Modulation Mode/Line Array Mode/Pulse Mode/Timer Mode |
| Output Power Adjustment Range (%) | 1 - 100 | 1 - 100 |
| Output Laser Wavelength (nm) | 1080 ±10 | 1080 ±10 |
| Maximum Modulation Frequency | 50kHz | 50kHz |
| Swing Mode | Single Pendulum | Single Pendulum |
| Matching Fiber Length (m) | 5 ±0.5 (Other Customizable Options) | 5 ±0.5 (Other Customizable Options) |
| Cooling Method | Active Air Conditioning Direct Cooling | Active Air Conditioning Direct Cooling |
| Operating Temperature Range (°C) | -20~50 | -20~50 |
| Input Voltage | 220VAC / 50Hz | 220VAC / 50Hz / 60Hz |
| Dimensions (mm) | 699 x 371 x 618 (L × W × H) | 699 x 371 x 618 (L × W × H) |
| Weight (kg) | ＜62 | ＜65 |
Legal Disclaimer：All product information is considered accurate, but may be subject to change without prior notice.
