QCW-Open Vertical Jewelry Laser Welding Machine
DA-YME-200W-LS is a vertical open QCW laser welding machine that combines high power, high stability and flexible operation experience. It is not only suitable for jewelry factories, but also very suitable for store-level maintenance, boutique studios, and small processing points, making welding easier, more efficient, and more professional quality.
Product model: DA-YME-200W-LS
Laser power: 200W
More performance, more space, more efficiency.
DA-YME-200W-LS is an open vertical QCW laser welding equipment for jewelry processing, precious metal repair and precision micro welding scenarios. The whole machine adopts an intelligent air cooling system, which is compact in size but has a strong output, achieving the perfect combination of high peak energy and stable welding quality.
The open structure makes the operation more flexible, suitable for welding and repairing jewelry parts of various sizes; with a user-friendly observation system and intelligent control interface, it can be easily used without the need for professional welders.
Product core highlights
1. Intelligent air cooling system, no need for a chiller
Efficient heat dissipation without additional cooling equipment
Reduce maintenance costs and energy consumption
Flexible placement, suitable for on-site use in studios, counters, and stores
2. Open vertical structure, providing more space and freedom of operation
Suitable for complex, special-shaped, and larger-sized jewelry
Not limited by the cavity, it is more convenient to place and pick up
Maintenance work efficiency is significantly improved
3. QCW quasi-continuous laser, welding is more stable
Output energy intensive, high deep penetration strength of solder joints
Low thermal impact and excellent deformation control
Suitable for gold and silver jewelry welding, hole replenishment, wire replenishment, reinforcement and other processes
4. Easy to learn, no professional welder required
Intelligent parameter preset, one-click use
With micro-observation system, the welding position is more accurate
Quick to get started, beginners can also weld beautiful beads
5. Beautiful weld bead, no need to polish
Fine weld marks and high finish
The weld is flat, reducing post-polishing time
Improve overall processing quality and work efficiency
6. Maintenance-free design, reliable and durable
The laser has a long lifespan and high stability
Full machine air-cooled structure without consumables
It can operate stably for a long time without maintenance
Applicable industries and materials
Industry application

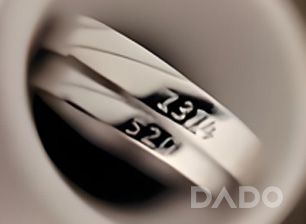

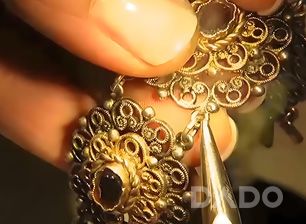

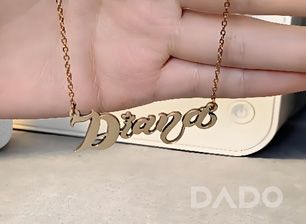

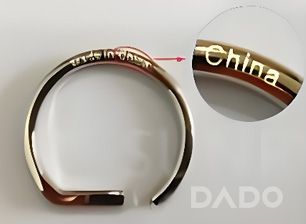

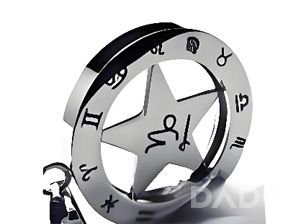

Gold, silver, platinum and other jewelry welding repair

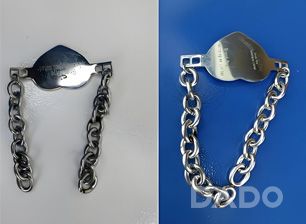

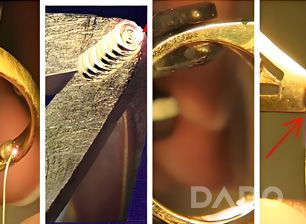

Inlay, patch, patch, fracture repair

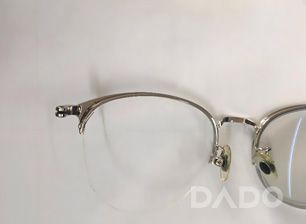

Machining of watches, glasses and other precision components
Micro welding of small hardware and precision parts
weldable material
Gold, silver, platinum, palladium and other precious metals
Stainless steel, copper, brass
Precision alloys, small metal structural parts
| Model | DA-YME-200W-LS |
|---|---|
| Output power (W) | 200W |
| laser wavelength | 1064nm |
| Single pulse energy | 90J |
| Laser type | Nd: YAG |
| Laser welding depth | 0.1-3.0mm |
| pulse width | 0.1-20ms |
| Laser welding frequency during combo | 0-50Hz |
| Adjustable range of light spot size | 0.2-3mm |
| Power consumption of the whole machine | ≤1KW |
| electricity demand | AC220V±10%/50Hz 30A |
| cooling method | air cooling |
| observation system | 10X microscope or high definition CCD 10Xmicroscope or high definition CCD |
| protective gas | Argon |
| Host system size | |
