QCW-Closed Vertical Jewelry Laser Welding Machine
The DA-YME-200W-FB QCW enclosed vertical jewelry laser welding machine combines high safety, high-quality welding results with a compact and flexible design. Whether it is a repair work in a jewelry store or a professional processing workshop, it can provide a stable, high-quality and easy-to-operate welding experience, making it an ideal choice for precision welding of jewelry.
Product model: DA-YME-200W-FB
Laser power: 200W
Fully enclosed protection · High quality welding · Specially built for Jewelry Seiko
DA-YME-200W-FB is a closed vertical QCW laser welding equipment designed for the needs of jewelry processing, precious metal repair and precision micro welding. The whole machine adopts a semi-closed operating cavity and a microscopic observation system to achieve high safety, high stability and high quality micro welding effects. The equipment has a compact structure and covers an area of only about 600mm wide, suitable for a variety of scenarios such as jewelry studios, processing shops, and factory line edges.
Product core advantage
1. Closed operating cavity for better safety protection
Double glove box design effectively isolates laser and smoke
Safer to use, suitable for crowded environments such as stores and exhibition halls
No additional protective barriers are required, making it safer to use the specifications
2. QCW quasi-continuous laser, stronger welding ability
High explosive power and excellent welding depth
Heat input is more stable, and weld deformation is properly controlled
Capable of fine crafts such as jewelry repair, hole repair, inlay reinforcement, and silk replenishment
3. Beautiful weld bead, no need to polish
Fine light spot, clean solder joint
The weld is flat and smooth, greatly reducing the polishing time
The appearance quality of the finished product has been significantly improved
4. Intelligent air-cooled design, maintenance-free and low-cost
No need for a chiller, making it easier to use
Lower maintenance costs, no need to replace coolant
The whole machine is stable and reliable, suitable for long-term continuous operation
5. Simple operation, no need for professional welders
Touch screen control system, user-friendly interface
Common material parameters are preset, and beginners can learn it in 10 minutes
Microscopic observation system helps to accurately locate solder joints and improve the success rate of welding
6. Compact structure, smaller footprint
The height of the equipment is about 1152mm and the width is about 600mm.
Suitable for small studios, counters, and workshop corners
Easy to move, flexible to adapt to various working environments
field of application

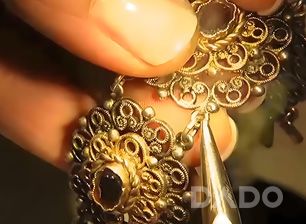

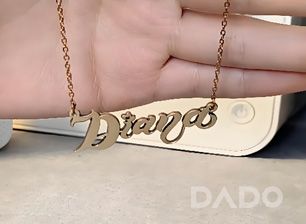

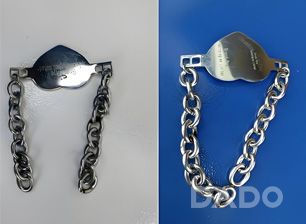

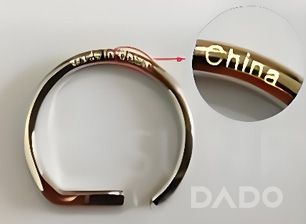

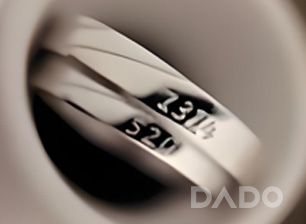

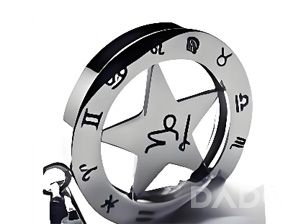

All kinds of gold and silver jewelry welding and repair

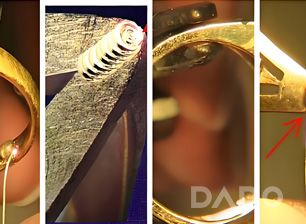

Inlay, fill holes, fracture repair

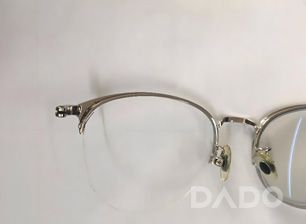

Watch accessories, glasses frames, hardware welding
Micro welding of precision metal small parts
weldable material
Gold, silver, platinum, palladium and other precious metals
Stainless steel, copper, brass
Precision alloys and small metal structural parts
| Model | DA-YME-200W-FB |
|---|---|
| Output power (W) | 200W |
| laser wavelength | 1064nm |
| Single pulse energy | 90J |
| Laser type | Nd: YAG |
| Laser welding depth | 0.1-3.0mm |
| pulse width | 0.1-20ms |
| Laser welding frequency during combo | 0-50Hz |
| Adjustable range of light spot size | 0.2-3mm |
| Power consumption of the whole machine | ≤1KW |
| electricity demand | AC220V±10%/50Hz 30A |
| cooling method | air cooling |
| observation system | 10X microscope or high definition CCD 10Xmicroscope or high definition CCD |
| protective gas | Argon |
| Host system size | |
