Portable marking machine
The new handheld laser marking machine realizes technological innovation on the basis of the original, and the price is close to the people. Large battery, excellent heat dissipation and high-precision optical system ensure continuous full-power marking without heat accumulation, achieve full power output, and greatly improve production efficiency. Equipped with 8-core Linux system and intelligent operation interface, it simplifies operation and easily handles various marking tasks. At the same time, it is equipped with an emergency stop switch for safe use. No matter what industry you are in, as long as there is a marking demand, it can bring you unexpected surprises.
Product model: DA-GX- 20/30/50
Laser power: 20W/30W/50W
The new handheld laser marking machine realizes technological innovation on the basis of the original, and the price is close to the people. Large battery, excellent heat dissipation and high-precision optical system ensure continuous full-power marking without heat accumulation, achieve full power output, and greatly improve production efficiency. Equipped with 8-core Linux system and intelligent operation interface, it simplifies operation and easily handles various marking tasks. At the same time, it is equipped with an emergency stop switch for safe use. No matter what industry you are in, as long as there is a marking demand, it can bring you unexpected surprises.
core features
application field
Metal processing and manufacturing
- Hardware/tool industry: Stainless steel, iron, copper, aluminum and other materials can be used to mark the brand, specification and traceability code of wrenches, screwdrivers, molds and fasteners.
- Automotive manufacturing industry: engine block, transmission gear, aluminum parts, rubber seals, plastic interior parts and other key components require laser marking to achieve permanent traceability.
- Electronic and electrical industry: stainless steel shell, aluminum heat sink, plastic button/shell, copper terminals, etc., used to mark the model, serial number, QR code and other information.
Packaging and Consumer Goods Industry
- Food/medicine/daily chemical packaging: cartons and lacquered label paper can be directly marked with the production date, batch number, and anti-counterfeiting code, which are commonly found in the outer packaging of snacks, medicines, and cosmetics.
- Luxury goods and gifts industry: lacquered glass (e.g. perfume bottles, tableware), laser engraving patterns for metal jewelry, and brand logos to enhance product texture and anti-counterfeiting.
Other key application industries
- Medical apparatus industry: stainless steel surgical instruments, plastic supplies sterilization identification, batch number, in line with hygiene and traceability requirements.
- Rubber and plastic products industry: rubber seals, plastic pipes, cable sheath specifications, temperature grade marking, commonly found in construction, home appliances, automotive fields.
- Logistics/warehousing industry: Barcode/QR code marking of painted label paper and cartons for logistics tracking and inventory management.
| Model | DA-GX-20/30/50 |
|---|---|
| laser | Fiber laser generator |
| output power | 20W / 30W / 50W |
| Marking range | 7070Mm/100100mm (optional) |
| Deflecting mirror | High-precision 3D scanning system |
| laser wavelength | 1064nm |
| Focusing lens | F100 / F160 |
| Marking speed | ≤12000mm/s, bitmap font |
| master control | Integrated main board, 8 inch tempered capacitive screen |
| Operating System | Linux system |
| Marking line type | Dot matrix, vector machine |
| line width | 0.03mm |
| repeatability | 0.01mm |
| positioning method | Red light positioning |
| Number of lettering lines | Any line within the effective marking range |
| Print speed | 800 characters (related to material and print content) |
| font | Chinese and English, numbers, traditional Chinese and other standard fonts |
| file format | BMP、DXF、HPGL、JEPG、PLT |
| barcode | CODE39、CODE128、CODE126、QR |

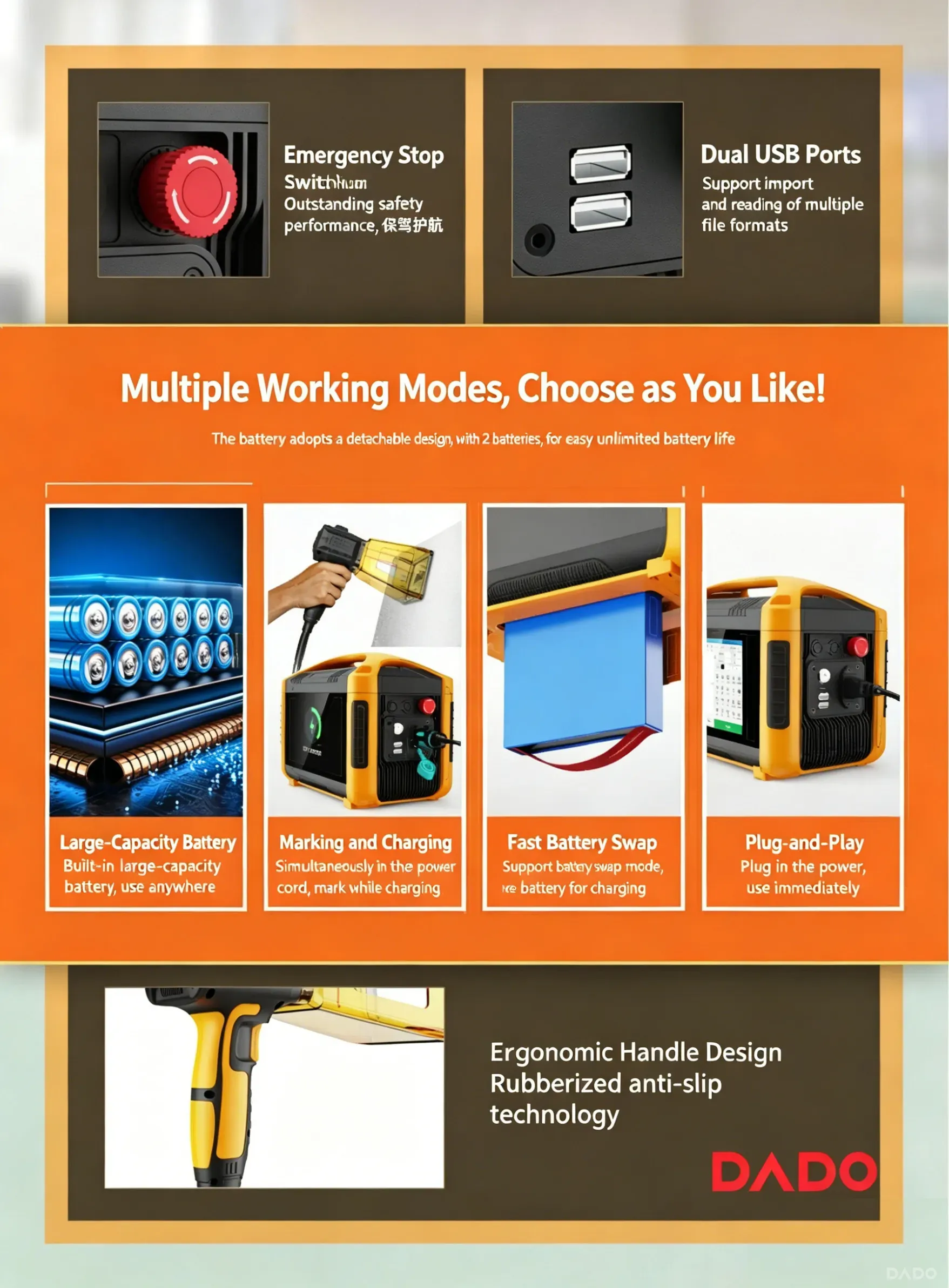

| power supply | 110V/220VAC/lithium battery (216wh) |
| Power consumption of the whole machine | 145-250W |
| Operating temperature of the whole machine | 0-40℃ |
| Overall weight | 6~ 6.8Kg (plug-in version, lithium battery version) |
| FCL weight | Power supply 8.7Kg Battery 9.7Kg |

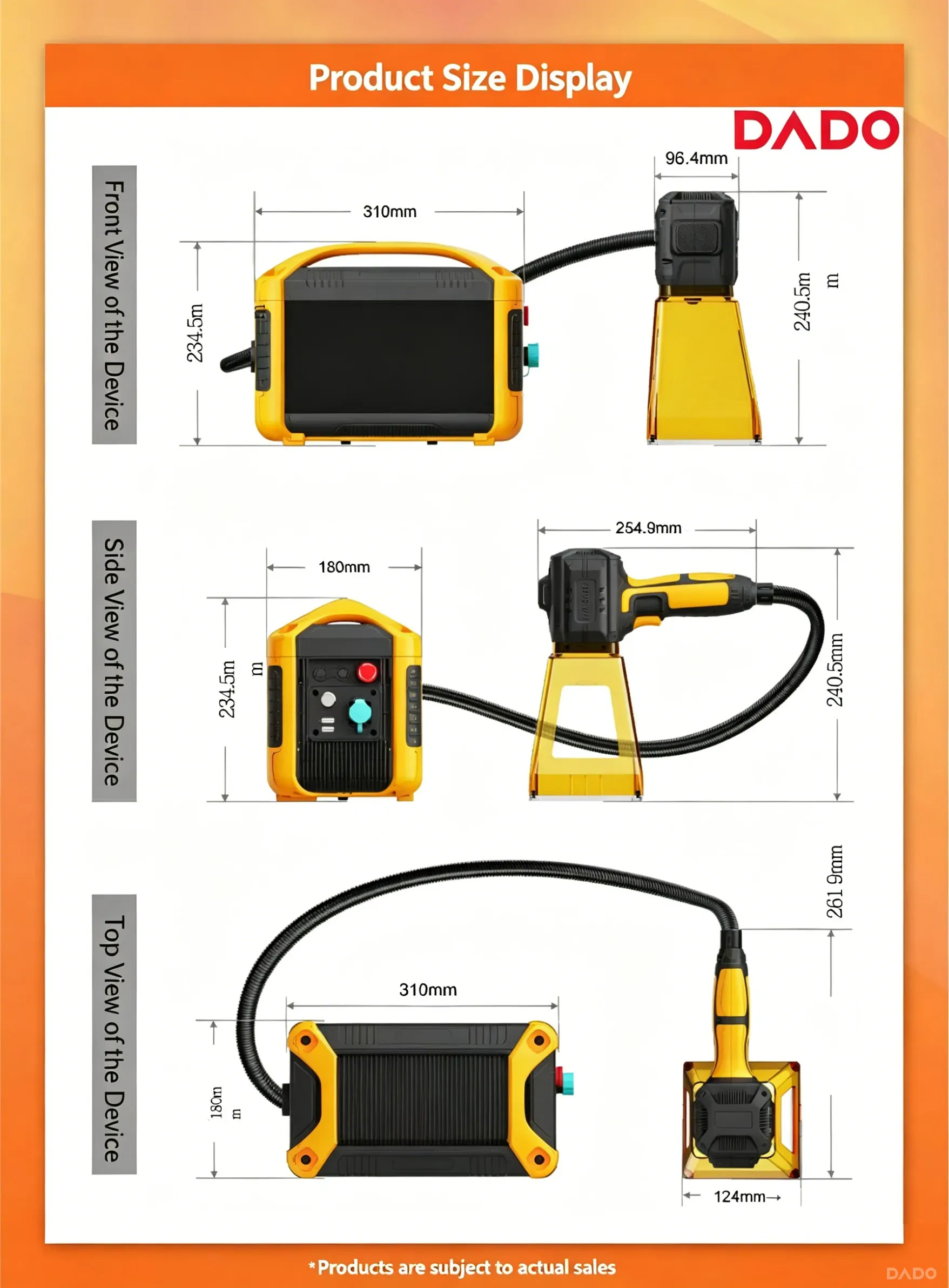

| Outer packing box size | 520X415X305mm (length, width and height) |
