Desktop ultraviolet marking machine
The small static laser marking machine belongs to the desktop ultraviolet laser marking equipment. It is a special model specially developed for the needs of high-precision marking, a wide range of applications, and simple, small and flexible equipment. It is developed using a 355nm ultraviolet laser, and the material has a high absorption rate of ultraviolet light, which has a wider material adaptability. The ultraviolet light focusing light spot is very small, and the processing heat affected zone is very small, which is more suitable for ultra-fine marking of various materials.
Product model: DA-UV-3W/5W-A9
Laser power: 3W/5W
The small static laser marking machine belongs to the desktop ultraviolet laser marking equipment. It is a special model specially developed for the needs of high-precision marking, a wide range of applications, and simple, small and flexible equipment. It is developed using a 355nm ultraviolet laser, and the material has a high absorption rate of ultraviolet light, which has a wider material adaptability. The ultraviolet light focusing light spot is very small, and the processing heat affected zone is very small, which is more suitable for ultra-fine marking of various materials.
core features
application field
Metal processing and manufacturing
Hardware/tool industry:
Suitable for stainless steel, iron, copper, aluminum and other materials, used for wrenches, screwdrivers, molds, fasteners brand, specification, traceability code marking.Automobile manufacturing industry: suitable for key components such as engine block, transmission gear, aluminum parts, rubber seals, and plastic interior parts, to achieve permanent traceability marking.
Electronic and electrical industry: suitable for stainless steel shell, aluminum heat sink, plastic button/shell, copper terminals, etc., for information marking such as model, serial number, QR code, etc.
Packaging and Consumer Goods Industry
Food/medicine/daily chemical packaging: cartons and lacquered label paper can be directly marked with the production date, batch number, and anti-counterfeiting code, which are suitable for the outer packaging of snacks, medicines, and cosmetics.
Luxury goods and gifts industry: lacquered glass (perfume bottles, tableware), metal jewelry laser engraving patterns, brand logos, to enhance product texture and anti-counterfeiting.
Other key application industries
Glass ceramics/building materials industry: goblets, glass handicrafts, ceramic bowls, wallpaper, acrylic signs, cables, etc., used for fine marking of text, patterns, and logos.
Medical apparatus industry: stainless steel surgical instruments, plastic consumables marked with sterilization marks, batch numbers, to meet hygiene standards and traceability requirements.
Rubber and plastic products industry: rubber seals, plastic pipes, cable sheaths, marking specifications, temperature resistance grades, covering construction, home appliances, and automotive fields.
Logistics/warehousing industry: painted label paper, carton marking barcode/QR code for logistics tracking and inventory management.
| Model | DA-UV-3W/5W-A9 |
|---|---|
| output power | 3W/ 5W |
| Beam of light M2 | ≤2 |
| pulse repetition rate | 10-150KHZ |
| laser wavelength | 355um |
| Output power stability | ＜3% |
| design life | Approximately 20,000 working hours (non-service life) |
| Marking range | 50~ 300Mm (range optional) |
| engraving depth | ≤1Mm (depending on power and time) |
| Engraving speed | ≤10000mm/s |
| repeatability | ±0.002 |
| line width | 0.03mm |
| minimum mark line width | 0.1mm |
| minimum character height | 0.15mm |
| cooling method | Built-in air cooling |
| System power supply | 400W / 220V / 50Hz（可接110V） |
| Temperature, humidity | 0~ 40, 30% ≤RH ≤85%, need to install air conditioning when using beyond the range |
| Oil mist, condensation | Not allowed |
| Operating System | windows |
| file format | Software supports text, QR code, barcode, serial number, graphics and other marking content |

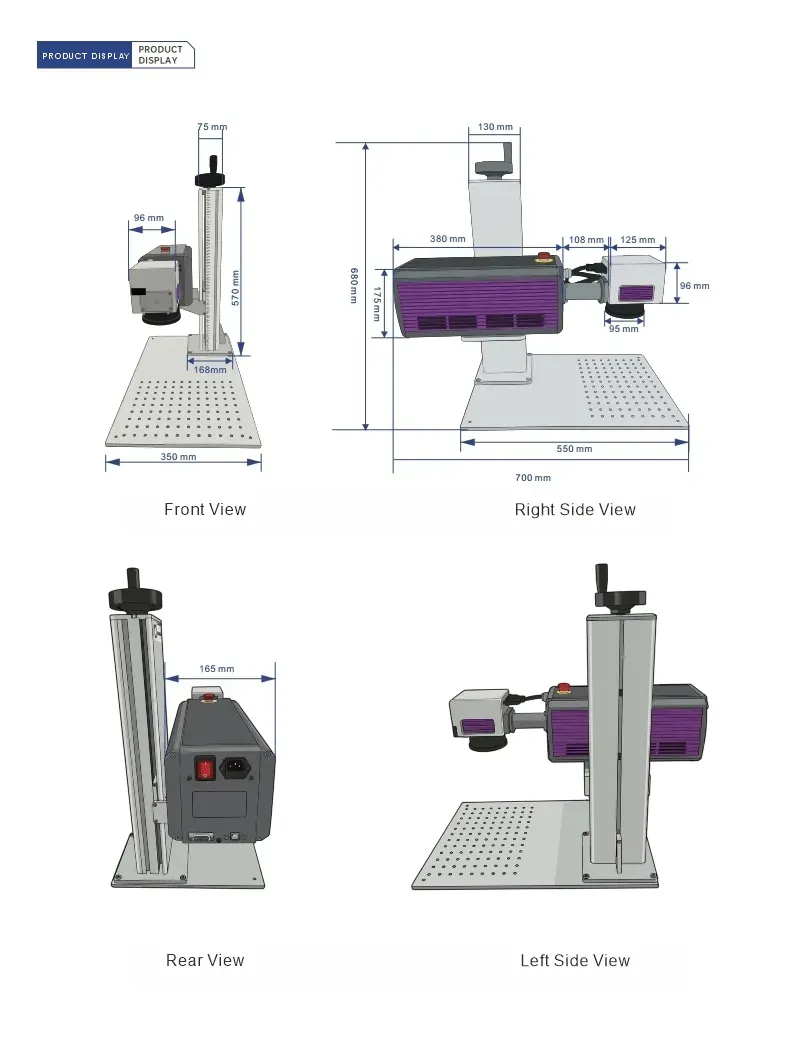

| exterior size | 700X350X680 mm |
| Outer packing box size |
